Product Details:
|
| Customized: | Customized | Machine Name: | 3ply Underpad Machine |
|---|---|---|---|
| Model: | ZLUP-I/II/III | Packing Details: | Plywood Pallets Wrapped By PE Film |
| Machine Color: | To Be Appointed By The Buyer | Efficiency: | ≥85% |
| Highlight: | 3 Ply Underpad Machine,600MM underpad making machine,Servo Control Underpad Machine |
||
3ply Underpad Machine

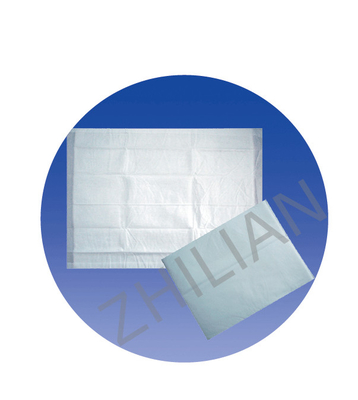

3ply Underpad Machine can produce disposable 3-ply underpad product. The product's structure is topsheet Nonwoven, pulp core and PE film. The product is traditional type, and with simple structure, and product is more soft. It is suitable for hospital; people with mild, moderate and severe incontinence; bedridden patients.
MAIN PERFORMANCES AND CHARACTERISTICS:
|
Design speed: |
150m/min ~ 250 m/min |
|
Production speed: |
100 m/min ~ 200 m/min |
|
Product length: |
450MM / 600MM / 900MM (Products can be customized according to requirements) |
|
Product Width: |
450mm/600mm/800mm (Products can be customized according to requirements) |
|
Efficiency: |
≥85% |
|
Waste rate: |
≤3% |
|
Power: |
380V, 50Hz, 3 Phases |
|
Compressed air consumption: |
0.6-0.8Mpa, 2.5 M³/min |
|
Overall dimensions (working area): L * W * H: |
around 24m* 7m * 4.5m |
|
Color of the machine: |
To be appointed by the Buye |
*For reference only, the final technical parameters depend on the final confirmed machine configuration.
Machine and Application
Disposable 3-ply underpad product composed of three layers of non-woven, fluff pulp core and bottom film. Disposable 3-ply underpad machine is made up of absorbent core making system, final product making systems, drive systems, conveyor systems, electrical control systems, self-checking systems and auxiliary system.
During operation, Man-machine dialogue realized by PLC and man-machine interface. The touch screen can be a timely operation, display and check or modify the point of failure data. To manual or auto control the spray glue, change material, cutter roller, unwinding, reject, material broken detection, material loss detection, counting.
Disposable 3-ply underpad product can be produced by the machine. It is suitable for hospital; people with mild, moderate and severe incontinence; bedridden patients.
Our Service:
Pre-Sales Service
* Inquiry and consulting support
* Product technical support
* Workshop layout technical support
* View our factory
After-Sales Service
* Training how to use and maintain the machine
* Provide machine failure solutions
* Spare parts provide(Charge according to different spare parts cost)
