Product Details:
|
| Customized: | Customized | Machine Name: | T Type Baby Diaper Machine ZLBD |
|---|---|---|---|
| Model: | ZLBD(T)-I/II/III | Packing Details: | Plywood Pallets Wrapped By PE Film |
| Machine Color: | To Be Appointed By The Buyer | Efficiency: | ≥85% |
| High Light: | T type Baby Diaper Production Line,Disposable diaper machine,Baby Diaper Production Line 500 Pcs Min |
||
T type Baby Diaper Machine ZLBD
T type baby diaper machine is manufactured by ZHILIAN company. The machine is made up of straight pulp core or prefabricated composed absorbent core making system, front tape applying system, side tape applying system, elastic ribbon applying system, final product making system etc. Configure different machine control systems according to the needs of different customers.
MAIN PERFORMANCES AND CHARACTERISTICS:
| Design speed: | 450pcs/min ~ 500pcs/min |
| Production speed: | 300 pcs /min ~ 450 pcs /min |
| Product size: |
S/M/L/XL (Products can be customized according to requirements) |
| Waste rate: | ≤3% |
| Power: | 380V, 50Hz, 3 Phases |
| Compressed air consumption: | 0.6-0.8Mpa, 2.5 M³/min |
| Overall dimensions (working area): L * W * H: | around 31m* 7.5m * 3.5m |
| Color of the machine: | To be appointed by the Buyer |
*For reference only, the final technical parameters depend on the final confirmed machine configuration.
MACHINE AND APPLICATION
Disposable T type baby diaper machine is made up of absorbent core making system, final product making systems, product folding systems, drive systems, conveyor systems, electrical control systems, self-checking systems and auxiliary system.
During operation, Man-machine dialogue realized by PLC and man-machine interface. The touch screen can be a timely operation, display and check or modify the point of failure data. To manual or auto control the spray glue, change material, cutter roller, unwinding, reject, material broken detection, material loss detection, counting.

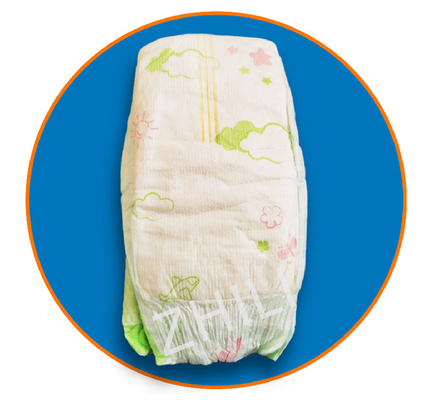

S/M/L/XL Disposable T type baby diaper product can be produced by the machine. The main part of the product is straight, which saves some materials and reduces the product cost to a certain extent. According to different product sizes, it is suitable for different growth stages of babies.
OUR SERVICE:
Pre-Sales Service
* Inquiry and consulting support
* Product technical support
* Workshop layout technical support
* View our factory
After-Sales Service
* Training how to use and maintain the machine
* Provide machine failure solutions
* Spare parts provide(Charge according to different spare parts cost)
GUARANTEE:
The parts directly manufactured by the Seller are guaranteed against defect in material and workmanship for a period of 12 months, starting from delivery date at Seller’s factory.
