Disposable Nursing Pad Underpad Machine Medical 200 m / min

Best Products
Certification
China Shanghai Zhilian Precision Machinery Co., Ltd. certification
China Shanghai Zhilian Precision Machinery Co., Ltd. certification
I'm Online Chat Now

Disposable Nursing Pad Underpad Machine Medical 200 m / min

Disposable Nursing Pad Underpad Machine Medical 200 m / min
Disposable Nursing Pad Underpad Machine Medical 200 m / min Disposable Nursing Pad Underpad Machine Medical 200 m / min

Large Image :  Disposable Nursing Pad Underpad Machine Medical 200 m / min

Product Details:
Place of Origin: CHINA
Brand Name: ZHILIAN
Model Number: ZLUP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pricing according to machine configuration
Packaging Details: Plywood pallets wrapped by PE film
Delivery Time: 150 working days from order confirmation, receipt of down payment and technical commercial definitions.
Payment Terms: T/T
Supply Ability: Supply according to customer needs

Disposable Nursing Pad Underpad Machine Medical 200 m / min

Description
Customized: Customized Machine Name: Multipurpose Comfortable Disposable Nursing Pad Underpad Machine ZLUP-III
Model: ZLUP-I/II/III Packing Details: Plywood Pallets Wrapped By PE Film
Machine Color: To Be Appointed By The Buyer Efficiency: ≥85%
Highlight:

Underpad Machine 200 m min

,

1800mm Under Pad Production Line

,

Nursing Pad Underpad Machine

Multipurpose Comfortable Disposable Nursing Pad Underpad Machine ZLUP-III



Multipurpose Comfortable Disposable Nursing Pad Underpad Machine can produce various range of nursing pad product according to customer's market needs. The machine is with high quality, high degree of automation and high production efficiency to reduce the production cost. ZHILIAN's underpad machine is your best choice.





MAIN PERFORMANCES AND CHARACTERISTICS:

 Design speed:  200m/min ~ 350 m/min(According to   different requirements of customers)
 Production speed:  170 m/min ~ 300 m/min(According to   different requirements of customers)
 Product length:

 500mm~1800mm

 (Products can be customized according to   requirements)

 Product Width:

 450mm/600mm/800mm

 (Products can be customized according to   requirements)

 Efficiency:  ≥85%
 Waste rate:  ≤3%
 Power:  380V, 50Hz, 3 Phases
 Compressed air consumption:  0.6-0.8Mpa, 2.5 M³/min
 Overall dimensions (working area): L * W * H:  around 25m* 7m * 4.5m
 Color of the machine:  To be appointed by the Buyer

 *For reference only, the final technical parameters depend on the final confirmed machine configuration.



MACHINE CONFIGURATIONS

      Disposable nursing underpad machine is made up of follows systems,

  • Absorbent core making system
  • Final product making systems
  • Dust filter
  • Automatic quality control system
  • Safety protection
  • Hotmelt applicator

      During operation, Man-machine dialogue realized by PLC and man-machine interface. The touch screen can be a timely operation, display and check or modify the point of failure data. To manual or auto control the spray glue, change material, cutter roller, unwinding, reject, material broken detection, material loss detection, counting.



APPLICATION

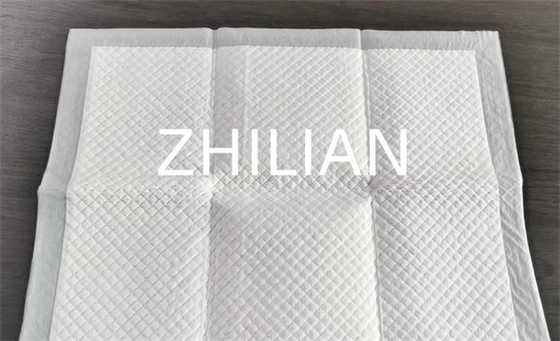

      Disposable nursing underpad product composed of five layers of non-woven, tissue paper, fluff pulp core, tissue paper and bottom film. The function of release paper can also be added according to customers' needs.

      Disposable nursing underpad product can be produced by the machine. It is suitable for baby diaper changing pads etc.



Disposable Nursing Pad Underpad Machine Medical 200 m / min 0





Disposable Nursing Pad Underpad Machine Medical 200 m / min 1



FAQ

Q: Can you configure the machine according to our samples?

A: Of course, our machines are custom-made. We design and manufacture the machine according to the requirements of customers. We will customize the appropriate machine scheme for you according to the samples you provide and the machine requirements.



Q: What is pre-sales services can you provide?

A: The pre-sales services we can provide are before sales, we will provide Inquiry and consulting support, Product technical support, Workshop layout technical support, View our factory etc.



Q: What is after-sales services can you provide?

A: The pre-sales services we can provide are after-Sales, we will provide Training how to use and maintain the machine, Provide machine failure solutions, Spare parts provide(Charge according to different spare parts cost).



Q: What is the delivery date of the machine?

A: The delivery time of different machine is different, usually 4-6 months, according to the specific configuration requirements of the machine you order.



Q: What is the guarantee term?

A: The parts directly manufactured by the Seller are guaranteed against defect in material and workmanship for a period of 12 months, starting from delivery date at Seller’s factory.
