New Type 5ply Underpad With Tissue Paper Machine

New Type 5ply Underpad With Tissue Paper Machine
New Type 5ply Underpad With Tissue Paper Machine New Type 5ply Underpad With Tissue Paper Machine

Large Image :  New Type 5ply Underpad With Tissue Paper Machine

Product Details:
Place of Origin: CHINA
Brand Name: ZHILIAN
Model Number: ZLUP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pricing according to machine configuration
Packaging Details: Plywood pallets wrapped by PE film
Delivery Time: 150 working days from order confirmation, receipt of down payment and technical commercial definitions.
Payment Terms: T/T
Supply Ability: Supply according to customer needs

New Type 5ply Underpad With Tissue Paper Machine

Description
Customized: Customized Machine Name: New Type 5ply Underpad With Tissue Paper Machine
Model: ZLUP-I/II/III Packing Details: Plywood Pallets Wrapped By PE Film
Machine Color: To Be Appointed By The Buyer Efficiency: ≥85%

New Type 5ply Underpad With Tissue Paper Machine



BRIEF DESCRIBE

Disposable 5-ply underpad product can be produced by the machine. It is suitable for hospital; people with mild, moderate and severe incontinence; bedridden patients. It can also be used for various other living purposes, such as baby diaper changing pads, placemats, outdoor pads, etc. As the biggest of underpad making machine manufactory in China. ZHILIAN will provide customers with high-quality machine and strong technical support.





MAIN PERFORMANCES AND CHARACTERISTICS:

 Design speed:  200m/min ~ 350 m/min(According to   different requirements of customers)
 Production speed:  170 m/min ~ 300 m/min(According to   different requirements of customers)
 Product length:  450mm~1500mm~2200mm(Product   length can be adjusted within this range)
 Product Width:  450mm/600mm/800mm/1000mm
 Efficiency:  ≥85%
 Waste rate:  ≤3%
 Power:  380V, 50Hz, 3 Phases
 Compressed air consumption:  0.6-0.8Mpa, 2.5 M³/min
 Overall dimensions (working area): L * W * H:  around 25m* 7m * 4.5m
 Color of the machine:  To be appointed by the Buyer

   *For reference only, the final technical parameters depend on the final confirmed machine configuration.



MACHINE CONFIGURATIONS

      Disposable 5-ply underpad product composed of five layers of non-woven, tissue paper, fluff pulp core, tissue paper and bottom film. The function of release paper can also be added according to customers' needs. Disposable 5-ply underpad machine is made up of follows systems,

  • Absorbent core making system
  • Final product making systems
  • Dust filter
  • Automatic quality control system
  • Safety protection
  • Hotmelt applicator

      Configure different control systems according to different requirements of machine buyers. Such as Invertor control, Semi-servo control, Full-servo control. During operation, Man-machine dialogue realized by PLC and man-machine interface. The touch screen can be a timely operation, display and check or modify the point of failure data. To manual or auto control the spray glue, change material, cutter roller, unwinding, reject, material broken detection, material loss detection, counting.

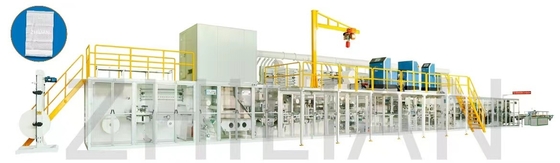

New Type 5ply Underpad With Tissue Paper Machine 0

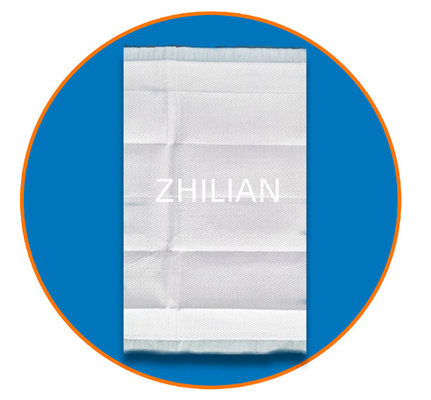

New Type 5ply Underpad With Tissue Paper Machine 1





OUR SERVICE:

    Pre-Sales Service

* Inquiry and consulting support

* Product technical support

* Workshop layout technical support

* View our factory



After-Sales Service

          * Training how to use and maintain the machine: During the machine test at the Seller’s plant, the

Buyer can send 2 staffs for a free training period of 7 days. Food, accommodation and the round trip air tickets will be at the Buyer’s account.

         * Provide machine failure solutions

         * Spare parts provide(Charge according to different spare parts cost)
