Product Details:
Place of Origin: CHINA
Brand Name: ZHILIAN
Model Number: ZLPL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Pricing according to machine configuration
Packaging Details: Plywood pallets wrapped by PE film
Delivery Time: 150 working days from order confirmation, receipt of down payment and technical commercial definitions.
Payment Terms: T/T
Supply Ability: Supply according to customer needs

Women Daily Use Pantyliner Machine Direction Panty Shield Machine

Description
Customized: Customized Machine Name: Women Daily Use Pantyliner Machine Direction Panty Shield Machine ZLPL-III
Model: ZLPL-I/II/III Packing Details: Plywood Pallets Wrapped By PE Film
Machine Color: To Be Appointed By The Buyer Efficiency: ≥85%
Highlight:

Women Pantyliner Machine

,

Machine Direction Panty Shield Machine

,

Daily Use Pantyliner Machine

Women Daily Use Pantyliner Machine Direction Panty Shield Machine ZLPL-III

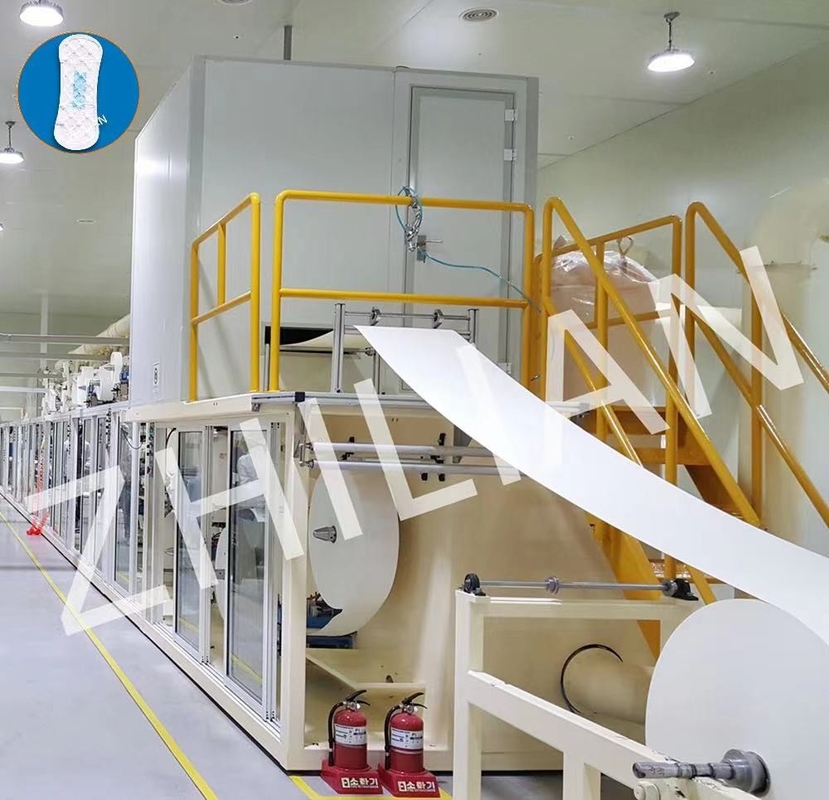

Women Daily Use Pantyliner Machine Direction Panty Shield Machine used to produce machine direction panty shield(pantyliner) product.  The product direction is consistent with the conveying direction of the machine according to the characteristics of the products produced. Suitable for daily use by female.





 MAIN PERFORMANCES AND CHARACTERISTICS:

 Design speed:  600pcs/min ~ 1500pcs/min(According to   different requirements of customers)
 Production speed:  500 pcs /min ~ 1200 pcs /min(According   to different requirements of customers)
 Product size:

 140mm~190mm

 (Products can be customized according to   requirements)

 Efficiency:  ≥85%
 Waste rate:  ≤3%
 Power:  380V, 50Hz, 3 Phases
 Compressed air consumption:  0.6-0.8Mpa, 2.5 M³/min
 Overall dimensions (working area): L * W * H:  around 19m*7m * 2m
 Color of the machine:  To be appointed by the Buyer

*For reference only, the final technical parameters depend on the final confirmed machine configuration.



MACHINE CONFIGURATIONS

      The product direction is consistent with the conveying direction of the machine.

      Disposable Machine direction Panty liner (Panty Shield) machine is made up of follows systems,

  • Absorbent core making system
  • Product folding systems
  • Single packing making systems
  • Final product making systems
  • Drive systems
  • Conveyor systems
  • Electrical control systems
  • Self-checking systems
  • Auxiliary system

      The product adopts pulp core or airlaid ultra-thin core structure.



APPLICATION

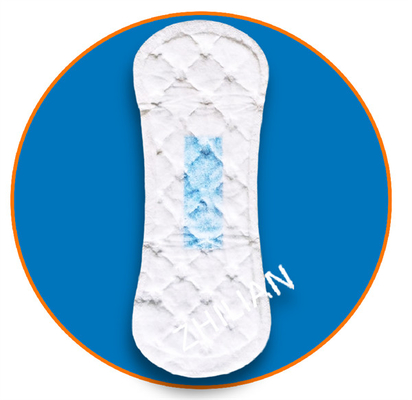

      Disposable Machine direction Panty liner (Panty Shield) product can be produced by the machine. The product adopts pulp core or airlaid ultra-thin core structure. Suitable for daily use by female.



Women Daily Use Pantyliner Machine Direction Panty Shield Machine 0



Women Daily Use Pantyliner Machine Direction Panty Shield Machine 1



FAQ

Q: Can you configure the machine according to our samples?

A: Of course, our machines are custom-made. We design and manufacture the machine according to the requirements of customers. We will customize the appropriate machine scheme for you according to the samples you provide and the machine requirements.



Q: What is pre-sales services can you provide?

A: The pre-sales services we can provide are before sales, we will provide Inquiry and consulting support, Product technical support, Workshop layout technical support, View our factory etc.



Q: What is after-sales services can you provide?

A: The pre-sales services we can provide are after-Sales, we will provide Training how to use and maintain the machine, Provide machine failure solutions, Spare parts provide(Charge according to different spare parts cost).



Q: What is the delivery date of the machine?

A: The delivery time of different machine is different, usually 4-6 months, according to the specific configuration requirements of the machine you order.



Q: What is the guarantee term?

A: The parts directly manufactured by the Seller are guaranteed against defect in material and workmanship for a period of 12 months, starting from delivery date at Seller’s factory.
